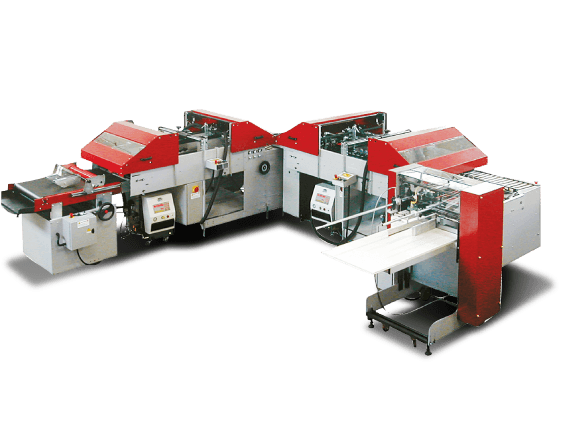

SAB 100C Digital

General information

For the production of integral covers in one step.

Just like the SAB 100, our SAB 100C Digital boasts an innovative digital system that enables total and simultaneous control of all speeds. The main different is that the SAB 100C Digital allows to create integral covers in just one step, instead of two.

The machine automatically controls the length of the incoming/outgoing sheets, as well as the quantity being processed. In the event that a sheet fails to complete its work cycle, the machine halts and indicates the location of the jam. This feature enables the continuation of subsequent processes, if possible.

The simplicity of the digital system also allows you to work with single machines, connect the system to other types of machines (2nd group SAB, CORDOBA, Metro), or add accessories for special processes; all with visualization and controls from the touch screen panel.

Single step

SAB 100C DIGITAL allows to perform the job in one single step. See the image for reference.

Option: Fly Cut

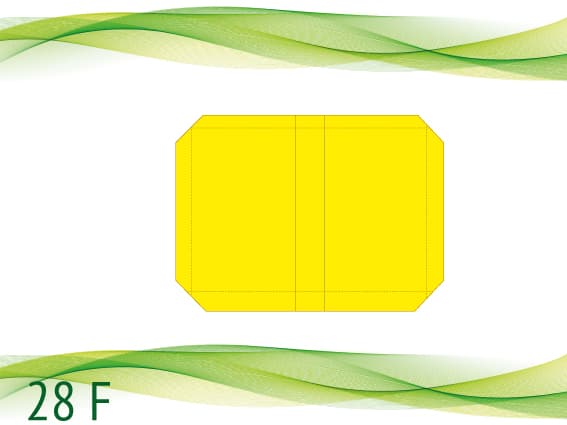

Once placed on the central creasing rollers, the Fly Cut system allows to cut the four corners of the integral covers on the move (without stopping the paper) and in line (simultaneously with creasing, gluing and folding), reducing costs and ensuring constant quality.

In fact, without Fly Cut, the preparation or cutting of the four corners is always performed outside the machine, using manual corner-cutting devices equipped with special shaped cutting tools. This leads to long preparation times and, often, inconsistent dimensional quality.

The shaped blades of the Fly Cut are made up of an adhesive metal die cutting form, and customized cutting shapes can be created on request.

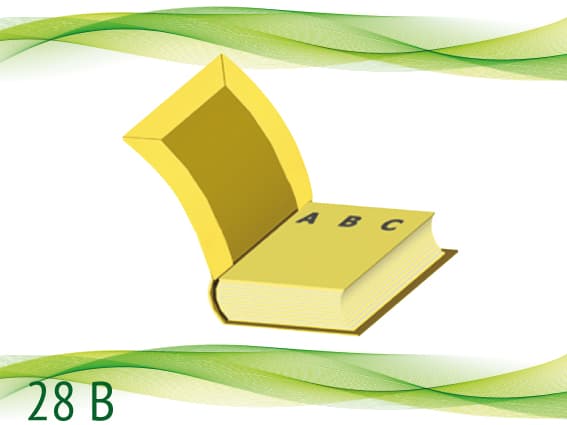

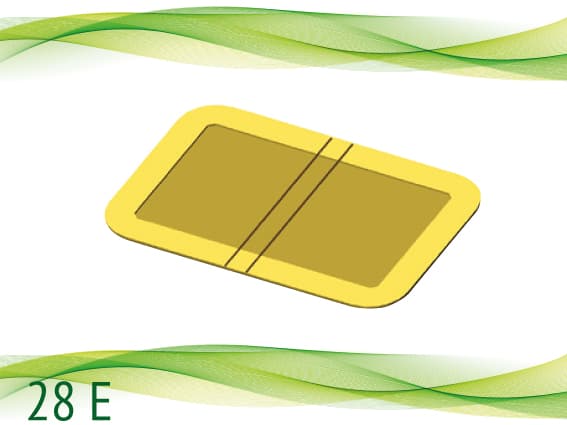

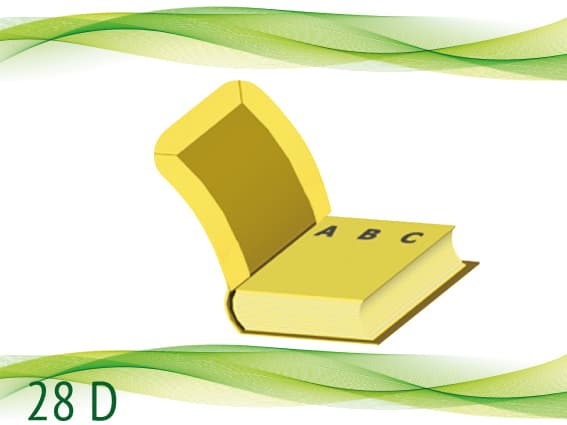

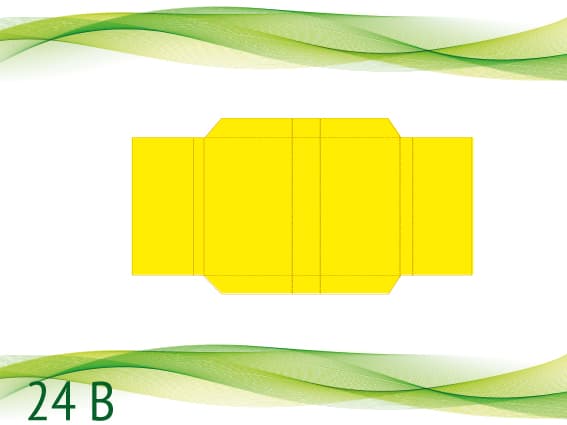

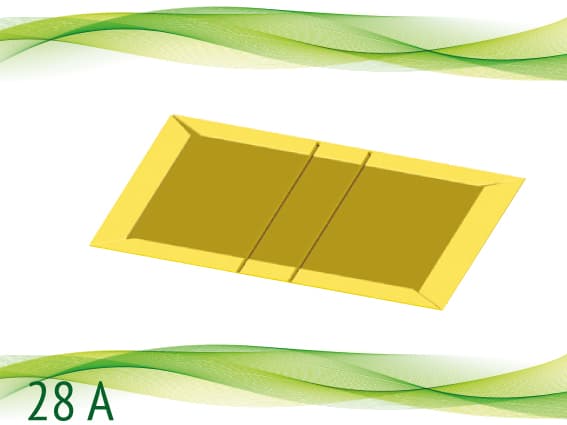

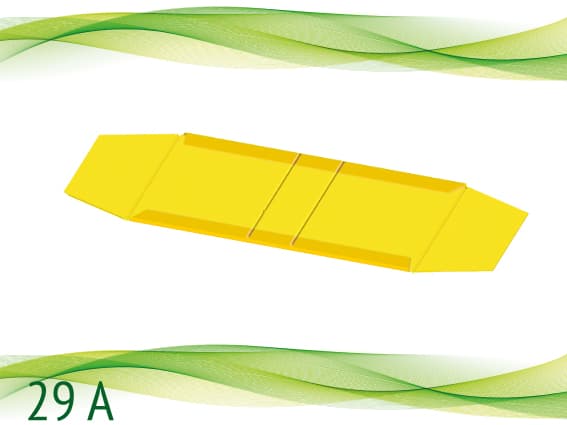

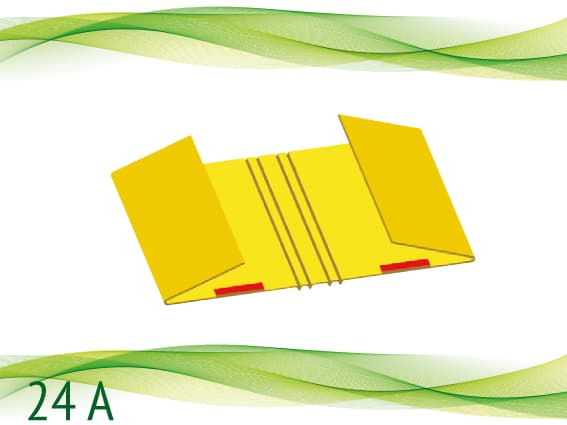

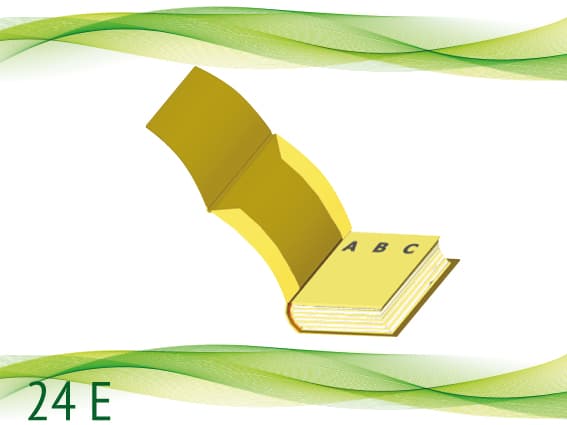

examples
